PRODUCT ADVANTAGE
⭐ Grade a cells with over 8500 times cycle life and offer 15 years extended warranty available to increase ROI
⭐ Build in intelligent BMS having protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell
⭐ Support max 16pcs parallel/stack power
⭐ Max charge and discharge 150A= 7680Wh to AC loading
⭐ Perfectly match over 16 brands hybrid inverters in the world
⭐ CTP tech to save battery size and reduce weight
⭐ Built in 200A double industrial heavy-duty power switch to warranty battery safety
| Package | No. | Item | General Parameter | Remark |
| 1 | Combination method | 16S1P | ||
| 2 | Rated Capacity | 280Ah | Standard discharge after Standard charge（package) | |
| 3 | Factory Voltage | 51.2V | Mean Operation Voltage | |
| 4 | DC Rated Power | 14.34kW | ||
| 5 | Voltage at end of Discharg | 46V | Discharge Cut-off Voltage | |
| 6 | Charging Voltage | 56V | Charge Cut-off Voltage | |
| 7 | Internal Impedance | ≤60mΩ | Internal resistance measured at AC 1KHZ after 50% chargeThe measure must uses the new batteries that within one week after shipment and cycles less than 5 times | |
| 8 | Standard Charge | Constant Current 50A Constant Voltage see No.5 0.02CA cut-off | Charge time : Approx 2.5 h | |
| 9 | Maximum Continuous Charge Current | 100A | ||
| 10 | Standard Discharge | Constant current：50A end voltage see NO.4 | ||
| 11 | Maximum Continuous Discharge Current | 150A | ||
| 12 | Depth of Discharge | 80% | 11.47Kwh | |
| 13 | IP Rating | IP20 | ||
| 14 | Operation Temperature Range | Charge: 0~45℃ | ||
| Discharge: -20~55℃ | ||||
| 15 | Storage Temperature Range | Less than 12 months : -10~35℃ | 60±25%R.H. at the shipment state | |
| less than 3 months: -10~45℃ | ||||
| Less than 7 day : -20~65℃ | ||||

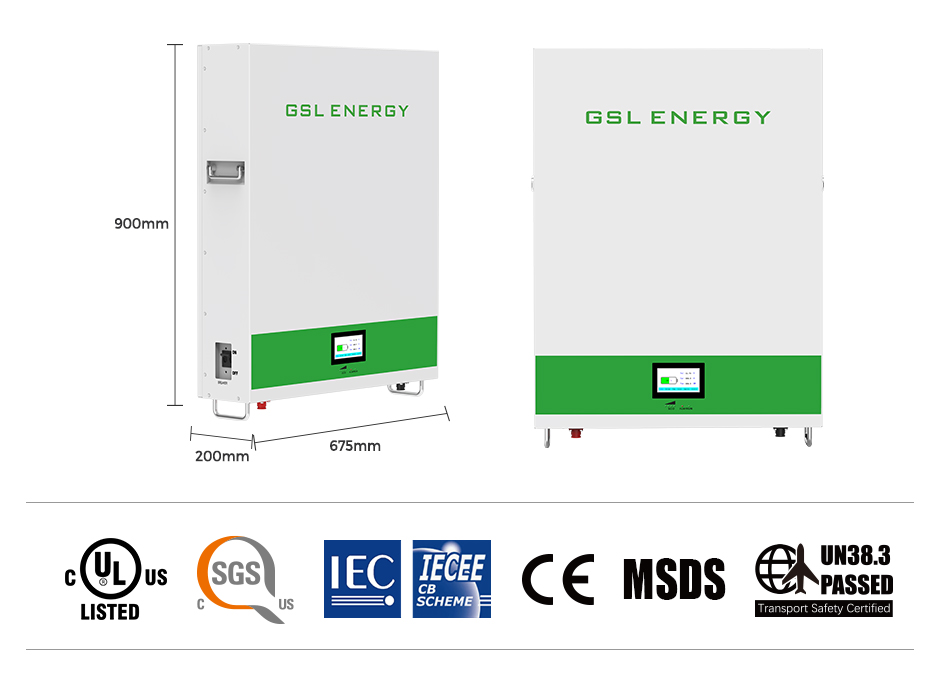

| 16 | Dimensions H/W/D | 900*675*200mm | Include Bracket | |
| 17 | Weight | Approx ：128.5kg （N.W） | ||
| 18 | BMS Port | Canbus/RS485 | ||
| 19 | BMS Support | 16PCS Parallel connection | 224KWH at max |
