Power Inverter Single Phase Solar System 3.6kw On/Off Grid Inverter For Solar Power System Home

Power Inverter Single Phase Solar System 3.6kw On/Off Grid Inverter For Solar Power System Home

Battery Type
Hybrid Inverter
Brand
GSL ENERGY
Model No
GSL-H-3.6K
Rated voltage
40V-60V
Size ( mm) / Size ( inch) L*W*H
580*330*217/22.8*13.0*8.5
Weight
20.5kgs/ 45.19 lbs
Application
Home ESS, Solar ESS, Solar off grid backup system
Package
Carton Box
Payment terms
T/T
Delivery time
With 15 days after deposit
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
PRODUCT PARAMETER

GSL ENERGY


product-GSL ENERGY-Power Inverter Single Phase Solar System 36kw OnOff Grid Inverter For Solar Powerproduct-GSL ENERGY Power Lifepo4 Lithium Battery 5Kw 7Kwh 10Kwh For Solar Energy Systems Home-GSL EN

product-GSL ENERGY-img

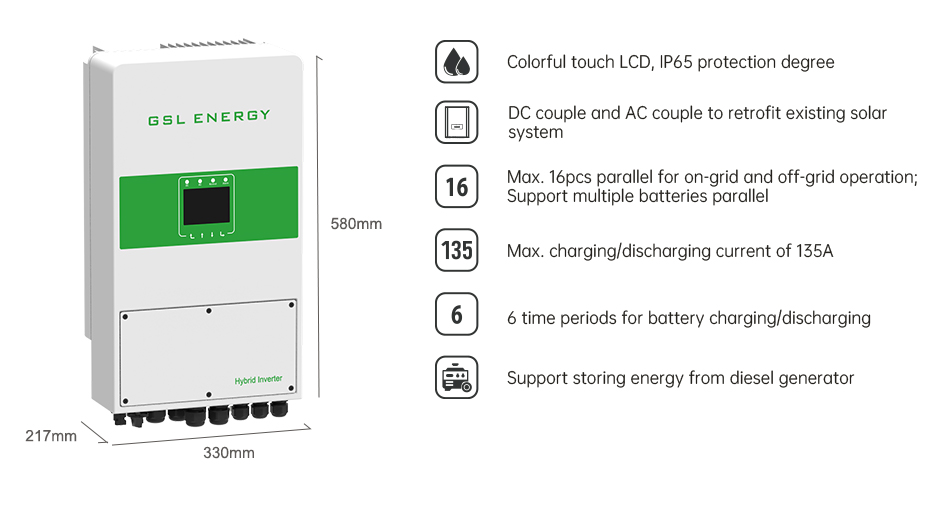

PRODUCT ADVANTAGE


product-Power Inverter Single Phase Solar System 36kw OnOff Grid Inverter For Solar Power System Hom

product-GSL ENERGY-img



Basic System Architecture

The following illustration shows basic application of this inverter.

It also includes following devices to have a Complete running system.

- Generator or Utility

- PV modules

Consult with your system integrator for other possible system architectures depending on your requirements.

This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.


product-GSL ENERGY-img-1

Mode

product-GSL ENERGY-img-1


Battery input dataGSL-H-3.6KGSL-H-5.0K

GSL-H-8.0K

Battery Type

Lead-acid or Li-IonLead-acid or Li-IonLead-acid or Li-Ion
Battery Voltage Range (V)40~60V40~60V40~60V
Max.Charging Current (A)
90A125A190A
Max.Discharging Current (A)
90A125A190A
Charging Curve
3 Stages/Equalization3 Stages/Equalization3 Stages/Equalization
External Temperature Sensor
OptionalOptionalOptional
Charging Strategy for Li-on Battery
Self-adaption to BMSSelf-adaption to BMSSelf-adaption to BMS
PV String Input Data


Max. Input Power4680W6500W9880W
PV Input Voltage370V (100V~500V)370V (100V~500V)370V (100V~500V)
MPPT Range (V)125V-425V125V-425V125V-425V
Start-up voltage (V)125V125V125V
PV Input Current (A)11A+11A11A+11A18A+18A
No.of MPPT Trackers2
22
No.of Strings Per MPPT Trackers1/11/11/1
AC Output Data


Rated AC Output and UPS Power(W)3600W5000W7600W
Power (off grid)2 times of rated power,10S2 times of rated power,10S2 times of rated power,10S
AC Output Rated Current (A)15.7A21.7A31.7A/33A
Output Frequency and Voltage50/60Hz;220Vac/230Vac/240Vac (Single phase)50/60Hz;180Vac-240Vac
Protection


PV Arc Fault DetectionIntegrated
PV Input LightningIntegrated
Anti-islandingIntegrated
PV String Input Reverse PolarityIntegrated
Insulation Resistor DetectionIntegrated
Residual Current Monitoring UnitIntegrated
Output Over CurrentIntegrated
Output Shorted Integrated
Output Over VoltageIntegrated
Certifications and Standards


Grid RegulationVDE-ARN4105,VDE0126,AS4777,NRS2017,G98,G99,EN50438
Safety RegulationIEC62109-1,IEC62109-2
EMCEN61000-6-1,EN61000-6-3
General Data


Operating Temperature Range(℃)-25~60℃,>45℃ Derating-25~60℃,>45℃ Derating-25~60℃,>45℃ Derating
CoolingFanFanFan
Noise (dB) <30 <30 <30
Communication with BMSRS485;CANRS485;CANRS485;CAN
Weight (kg)20.5KG20.5KG42KG
Size (Length*Width*Height mm)580×330×217mm580×330×217mm680×420×233mm
Degree
IP65IP65IP65
Installation StyleWall-mountedWall-mountedWall-mounted
Warranty5 years5 years5 years
