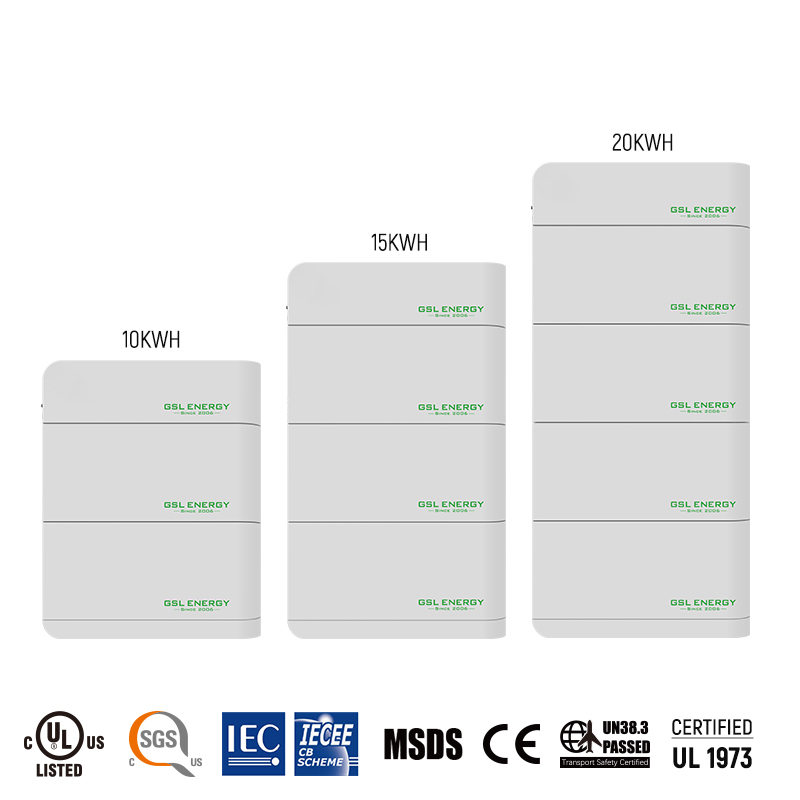

10kWh/15kWh/20kWh 204V/307V/409V Residential ESS
GSL's power storage ESS adopts the latest HESS battery system. With rich experience and advanced techniques, this kind of home battery provides house battery backup for emergency use, it has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion. Our ESS can provide comprehensive energy storage for residential, commercial and utility applications. Our Li-ion battery portfolio covers cells, modules, cabinets (indoor/outdoor) and containers, which offer customers excellent scalability and adaptability to a wide variety of requirements.
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

MODEL NO

GSL20450

GSL30750
GSL40950
Battery ChemistryLiFePO4

Capacity (Ah)

50

Nominal Voltage (V)

204.8V (64series)307.2V (96series)409.6V (128series)

Energy (kWh)

101520

Internal Resistance

≤80mΩ
Cycle Life

≥5000 cycles @80% DOD, 25℃, 0.5C

≥4000 cycles @80% DOD, 40℃, 0.5C

Design Life≥10 years
Charge Cut-off Voltage228V±2V304V±2V405V±2V
Max.Continuous Work Current100A
Discharge Cut-off Voltage
180V±2V270V±2V350V±2V
Charge Temperature0℃~60
Discharge Temperature-20℃~60
Storage Temperature-40℃~55℃ @ 60%±25% relative humidity
Dimension (W/H/D,mm)630*185*930630*185*1265630*185*1600

Weight Approximate (kg)

Approx:130kgApprox:180kgApprox:230kg
Life Cycle Power During Warranty Period

RS232-PC,RS485(B)-PC RS485(A)-Inverter,Canbus-Inverter

CertificationUN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
