A Leader of LifePO4 Battery in China Since 2006
|Technology parameter sheet|
Battery rated voltage
|Battery Type||Lifepo4(10 years)||Lifepo4||Lifepo4 Battery|
|Input voltage range||145-275VAC||145-275VAC||145-275VAC|
|Pure Sine Wave||Pure Sine Wave||Pure Sine Wave|
|Specification of built-in battery||1*100AH/25.6V||1*100AH/48V|
|MPPT Solar input||MPPT Voltage Range||15V-150VDC||30V-150VDC||60V-150VDC|
|Rated charge current||30A(Max)||50A(Max)||60A(Max)|
|Floating charge voltage||14.4VDC||28.8VDC||54VDC|
|DC output||Low voltage recovery voltage||13.4VDC|
|Low voltage protection voltage||11.4VDC||22.8VDC||42.7VDC|
|5VDC USB output||2units/MAX 2A||2units/MAX 2A||2units/MAX 2A|
|12VDC output ports||2units/MAX 2A||2units/MAX 2A||2units/MAX 2A|
|Heat dissipation/Cooling||Temperature control by intelligent exhaust fan||Temperature control by intelligent exhaust fan||Temperature control by intelligent exhaust fan|
|Operating ambient temperature||-20 - +50℃||-20 - +50℃||-20 - +50℃|
|Storage ambient temperature||-25 - +55℃||-25 - +55℃||-25 - +55℃|
|Operating/Storage ambient||0-90% No condensation||0-90% No condensation||0-90% No condensation|

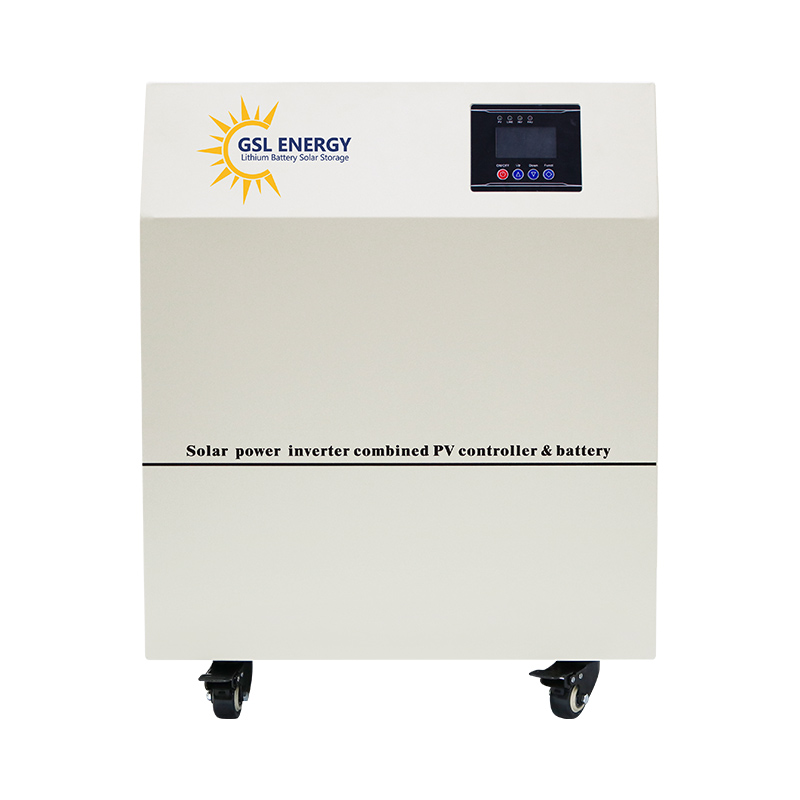

1. This is a multi-function inverter/charger/solar system.
2. Combining functions of inverter, solar charger and battery to offer uninterruptible power support with portable size.
3. LCD display, configure input voltage range for home appliances and personal computers, configure battery charging current based on applications, configure AC/Solar Charge priority.
4. Compatible to mains voltage or generator power, auto restart while AC is recovering.
5. Users can flexibly match battery capacity, standard battery packages or external batteries.
6. It combines a wide PV input range MPPT controller, can convert solar energy from PV to loads directly.
7. Integrated design, Easy transportion and installation.
8. Overload/Over temperature/short circuit protection.
9. Our product are CE ,ROHS, ISO, FC approved, meeting various certification requirements for different countries.
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
GSL ENERGY is focused on manufacturing,R&D and sales for safe Lithium battery and solutions. With the registration and certification of CE, SGS, ROHS. Striving to grow into a global leading lithium battery supplier, GSL ENERGY has been working hard on researching and developing new process technology to make our lithium battery more affordable and able to meet the rapidly growing market demands.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE/ROSH/UL/VDE/MSDS/UN38.3,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
SUPERIOR SERVICE IS MADE
BY VERTICAL INTEGRATION PLATFORM
We will serve you the best products with the favorite prices
