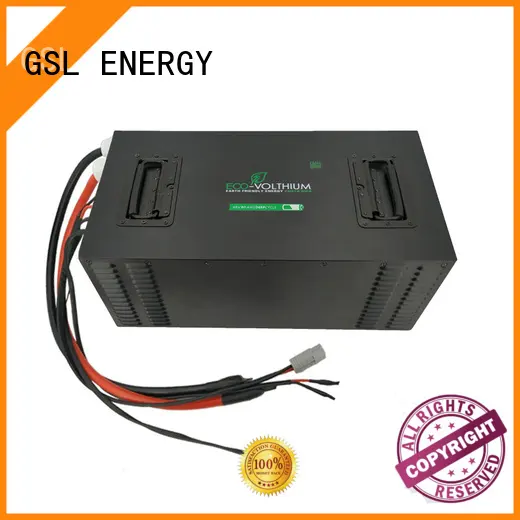

Good Quality Packs
| Products type | MODEL : GSL4880 | Battery pack Discharge Current (Max.) | 250A |
| Cell Technology | NCM Lithium | Efficiency | 98% |
| Battery Pack Capacity (Wh) | 4096 | Depth of Discharge | 100% |
| Battery pack Voltage (Vdc) | 51.2 | Dimension (L*W*H, mm) | 480*330*230 |
| Battery pack Capacity (AH) | 80 | Communication | Option of CANBUS OR RS485, SMbus |
| Battery pack Cell Quantity in Series (pcs) | 14S | Protection Class | IP54 |
| Battery pack Charge Voltage (Vdc) | 58.4 | Weight | 34.5KG |
| Battery System Charge Current (Standard) | 10A | Operation Life | 10+ years |
| Battery pack Charge Current (Normal) | 20A | Operation Cycle Life | Over 4000 times |
| Battery pack Charge Current (Max.) | 50A | Operation Temperature | 0-50℃ |
| Battery pack Discharge lower-Voltage (Vdc) | 46V | Storage Temperature | minus 20 -- 60 ℃ |
| Battery System Discharge Current (Standard) | 20A | Products certificates | TÜV (IEC62619), CE |
| Battery pack Discharge Current (Normal) | 100A | Transfer Certificates | UN38.3 , MSDS |
PRODUCTS DISPLAY
48V lithium ion battery is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery.
PRODUCT ADVANTAGE
1.High integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection, high voltage protection with higher reliability.
APPLICATION
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
PACKING
SUPER SAFETY TEST
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
WHY CHOOSE US
◆ Experience--More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification--CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control-- 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material-- Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery-- All battery is fresh Production.
| Technical Data | Standard Equipment | |||
| Seat No. | 2 | 1-Controller:AC programmable controller 9-Charging Type:on-board 110~240v,6~8hours IP66 CE | ||
| Overall Dimension | 3400x1380x1650mm | |||
| Cargo Box | 1550x1380x250mm | |||
| Wheelbase | 2400 | |||
| Wheel Track | 1175 | |||
| Min. ground clearance | 180mm | |||
| Max. speed | 40Km/h | |||
| Min. turning radius | 4m | |||
| braking distance | 3.8m | |||
| Max. slope of climb | 20% | |||
| Max. driving range | 120km based on road status | |||
| Motor | Max Power | 5KW | ||
| Voltage | 60V | |||
| GEL battery | Over 600 deep-cycle 150Ah at 80% DOD | |||
| Charging Time | 6~8hours | |||
| Curb weight(with Battery) | 956KG | |||
| Rated Load | 650KG | |||
| Option Parts | ||||
| Brake booster pump | Electric Power Steering | |||
| 7.5KW motor | 200AH battery,Air Conditioning | |||
| More Options Please Contact Customer Service Online or Send Inquiry | ||||
