12V 150AH/200AH/300AH LiFePO4 Battery
GSL's 12V lithium battery has the outstanding features of large capacity per unit weight, high discharge power, fast charging, long cycle life, and high stability under high temperature and high heat environment. The product has a 80% depth of discharge. One important advantage over other lithium-ion chemistries is its thermal and chemical stability, which improves the battery safety. With the combination of LiFePO4, the product can perform a more stable redox reaction and faster ion migration. The other is that it offers a longer cycle life. It has a very constant discharge voltage which can always stay stable until the cell is exhausted. This allows the cell to deliver virtually full power until it is discharged, and it can greatly simplify or even eliminate the need for voltage regulation circuitry. The battery back is impact-proof and is tested to be able to sustain heavy external shocks without risk of explosion.
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
ModelGSL 12V-150AHGSL 12V-200AHGSL 12V-300AH
Products type
Cell TechnologyLiFePO4
Battery Pack Capacity (Wh)192025603840
Battery pack Voltage (Vdc)12.8
Battery pack Capacity (AH)150200300
Battery pack Cell Quantity in Series (pcs)4S
Battery pack Charge Voltage (Vdc)14.6
Battery System Charge Current (Standard)10A
Battery pack Charge Current (Normal)20A
Battery pack Charge Current (Max.)50A
Battery pack Discharge lower-Voltage (Vdc)10V
Battery System Discharge Current (Standard)30A
Battery pack Discharge Current (Normal)150A150A150A
Battery pack Discharge Current (Max.)250A250A250A
Efficiency98%
Depth of Discharge100%
CommunicationOption of CANBUS OR RS485, SMbus
Protection ClassIP54
Operation Life10+ years
Operation Cycle LifeOver 4000 times
Operation Temperature0-50℃
Storage Temperatureminus 20 -- 60 ℃

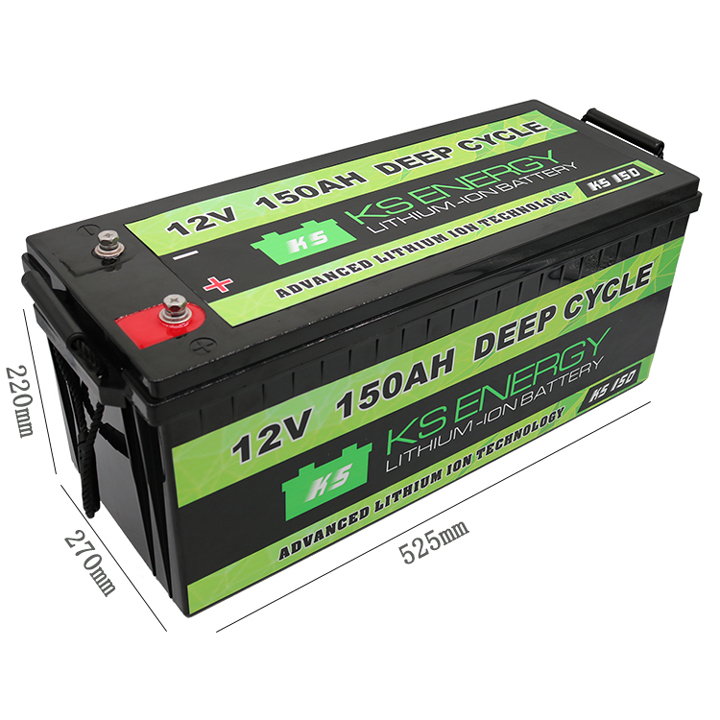

Dimension (L*W*H, mm)525*270*220
Weight18.5kg26.5kg38kg
