PRODUCT ADVANTAGE
⭐ Quick installation, standard of 19-inch embedded designed module is comfortable for fast installation and maintenance
⭐ Grade A cells with over 6500 times cycle life and offer 15 years extended warranty available to increase return of investment
⭐ Build in intelligent BMS having protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell
⭐ Support max 16pcs parallel/stack power to 76.8kwh
⭐ Perfectly match over 16 brands hybrid inverters in the world
⭐ CTP tech to save battery size and reduce weight

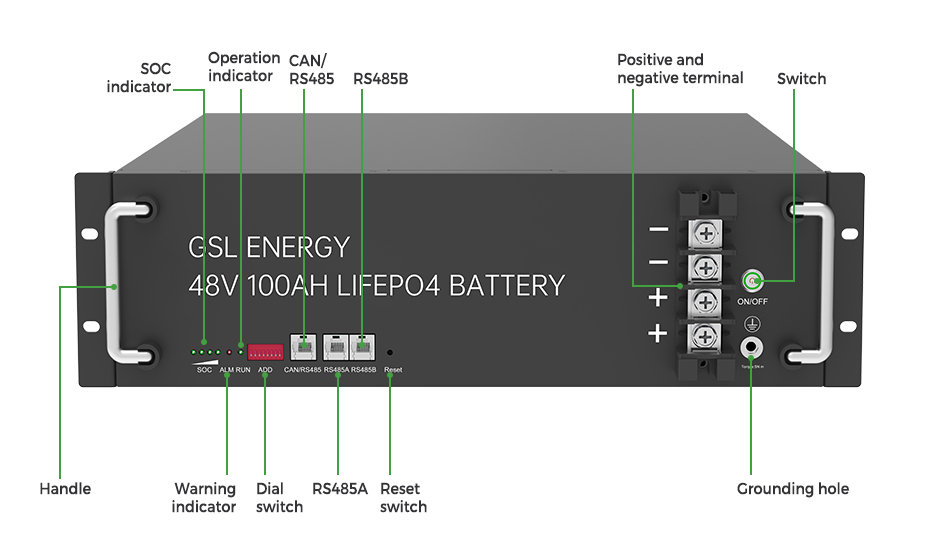

| MODEL NO | ZN-P48100ESA1 | |
| Battery Chemistry | LiFePO4 | |
Capacity (Ah) | 100 | |
| Scalability | Max.16pcs in parallel (76.8kWh) | |
Nominal Voltage (V) | 48 | |
| Operating Voltage(V) | 44-54 | |
Energy (kWh) | 5.12 | |
Usable Energy (kWh) | 4.61 | |
Charge/Discharge Current (A) | Recommend | 50 |
Max. | 100 | |
Peak(2mins,25℃) | 120 | |
| Other Parameter | ||
| Recommend Depth of Discharge | 90% | |
| Dimension (W/H/D,mm) | 482*520*132.5 | |
Weight Approximate (kg) | 39.50 | |
| Master LED Indicator | 4 LED (SOC:25%~100%) | |
2 LED (working, alarming, protecting) | ||
IP Rating of Enclosur | IP20 | |
| Working Temperature | Charge:0℃～55℃ Discharge:-20℃～55℃ | |
Storage Temperature | 0℃～35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) | ≥6500 | |
| Installation | 19inch Rack-mounted | |
| Communication Port | CAN2.0, RS485 | |
| Warranty Period [3] | 15 years | |
| Life Cycle Power During Warranty Period | 21.02MWh@80% EOL | |
| Certification | CB-IEC62619, CE-EMC, MSDS, UN38.3 | |
