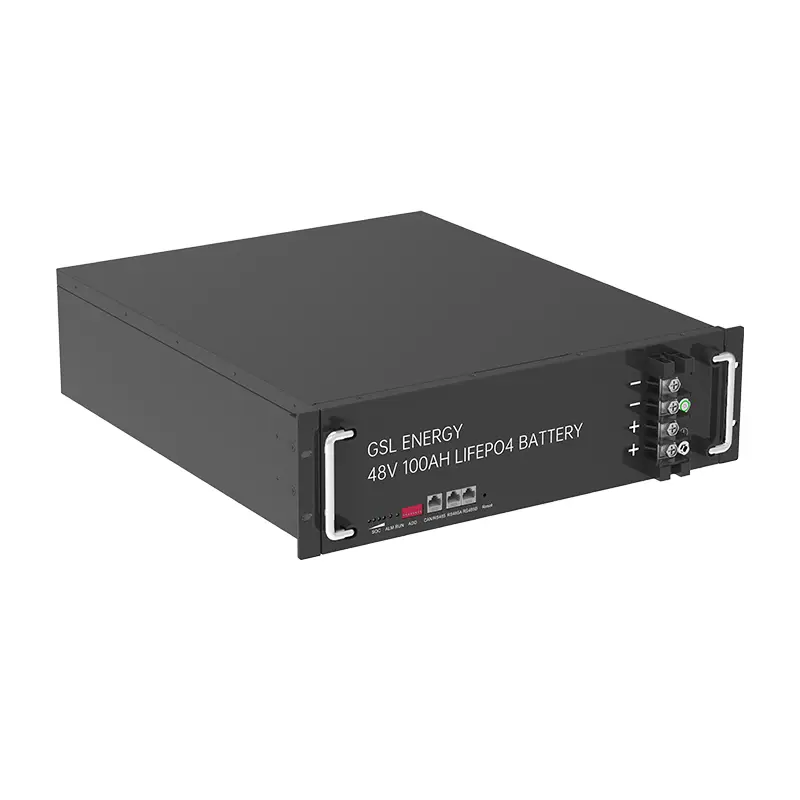

5kWh 100Ah 48V Stack Server Rack Battery
Modular 5kWh 48V Lithium Battery for Scalable Server Rack Energy Storage
GSL Energy’s 5kWh 100Ah 48V Stackable Lithium Battery is engineered for server rack energy storage solutions, delivering modular scalability and high reliability. Perfectly suited for data centers and telecom applications, this battery supports seamless system integration, efficient energy management, and long cycle life, utilizing safe and stable LiFePO₄ chemistry.
Designed also for residential energy storage, the Stack Rack Battery (GSL Energy Storage System) offers high energy density and versatile mounting options to save space across various installation scenarios. Its modular architecture allows you to scale your energy capacity to meet both current and future demands, making it an ideal choice for evolving load requirements.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| MODEL NO | ZN-P48100ESA1 | |
| Battery Chemistry | LiFePO4 | |
Capacity (Ah) | 100 | |
| Scalability | Max.16pcs in parallel (76.8kWh) | |
Nominal Voltage (V) | 48 | |
| Operating Voltage(V) | 44-54 | |
Energy (kWh) | 5.12 | |
Usable Energy (kWh) | 4.61 | |
Charge/Discharge Current (A) | Recommend | 50 |
Max. | 100 | |
Peak(2mins,25℃) | 120 | |
| Other Parameter | ||
| Recommend Depth of Discharge | 90% | |
| Dimension (W/H/D,mm) | 482*520*132.5 | |
Weight Approximate (kg) | 39.50 | |
| Master LED Indicator | 4 LED (SOC:25%~100%) | |
2 LED (working, alarming, protecting) | ||
IP Rating of Enclosur | IP20 | |
| Working Temperature | Charge:0℃～55℃ Discharge:-20℃～55℃ | |
Storage Temperature | 0℃～35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) | ≥6500 | |
| Installation | 19inch Rack-mounted | |
| Communication Port | CAN2.0, RS485 | |
| Warranty Period [3] | 10 years | |
| Life Cycle Power During Warranty Period | 21.02MWh@80% EOL | |
| Certification | CB-IEC62619, CE-EMC, MSDS, UN38.3 | |
