PRODUCT ADVANTAGE
⭐ Grade a cells with over 6500~8500 times cycle life and offer 10~15 years extended warranty available to increase ROI
⭐ Build in intelligent BMS having protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell
⭐ Support max 16pcs parallel/stack power
⭐ Max charge and discharge 100A=5120Wh, 150A= 7680Wh to loading
⭐ Perfectly match over 16 brands hybrid inverters in the world
⭐ CTP tech to save battery size and reduce weight
⭐ Built in 200A double industrial heavy-duty power switch to warranty battery safety
| MODEL NO | GSL051100A-B-GBP2 | GSL051200A-B-GBP2 | GSL051280A-B-GBP2 | |
| Battery Chemistry | LiFePO4 | |||
Capacity (Ah) | 100 | 200 | 280 | |
| Scalability | Max.16pcs in parallel (81.92kWh) | Max.16pcs in parallel (162kWh) | Max.16pcs in parallel (229kWh) | |
Nominal Voltage (V) | 51.2 | |||
| Operating Voltage (V) | 46-56 | |||
Energy (kWh) | 5.12 | 10.24 | 14.34 | |
Usable Energy (kWh) | 4.61 | 9.22 | 12.91 | |
Charge/Discharge Current (A) | Recommend | 50 | 100 | 100 |
Max. | 100 | 150 | 150 | |
Peak(2mins,25℃) | 120 | 200 | 200 | |
| Other Parameter | ||||
| Recommend Depth of Discharge | 80% | |||

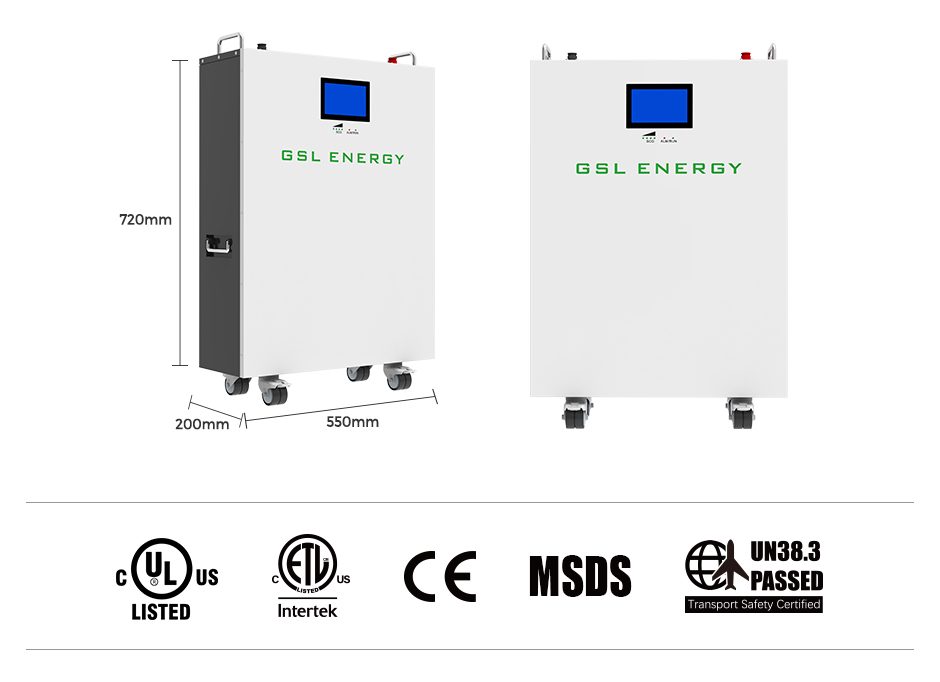

| Dimension (W/H/D,mm) | 480*615*160 | 550*720*200 | 900*675*200 | |
Weight Approximate (kg) | 62.50 | 102.50 | 128.50 | |
| Master LED Indicator | 4 LED (SOC:25%~100%) | |||
| 2 LED (working, alarming, protecting) | ||||
IP Rating of Enclosur | IP65 | |||
| Working Temperature | Charge:0℃～55℃ Discharge:-20℃～55℃ | |||
Storage Temperature | 0℃～35℃ | |||
| Humidity | 5%~95% | |||
| Altitude | ≤2000m | |||
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) | ≥6500 | ≥8500 | ||
| Installation | Wallmounted | |||
| Communication Port | CAN2.0, RS485 | |||
| Warranty Period | 10 years | 15 years | ||
| Life Cycle Power During Warranty Period | 22.42MWh@80% EOL | 44.84MWh@80% EOL | 64.80MWh@80% EOL | |
| Certification | MSDS, UN38.3 | |||
