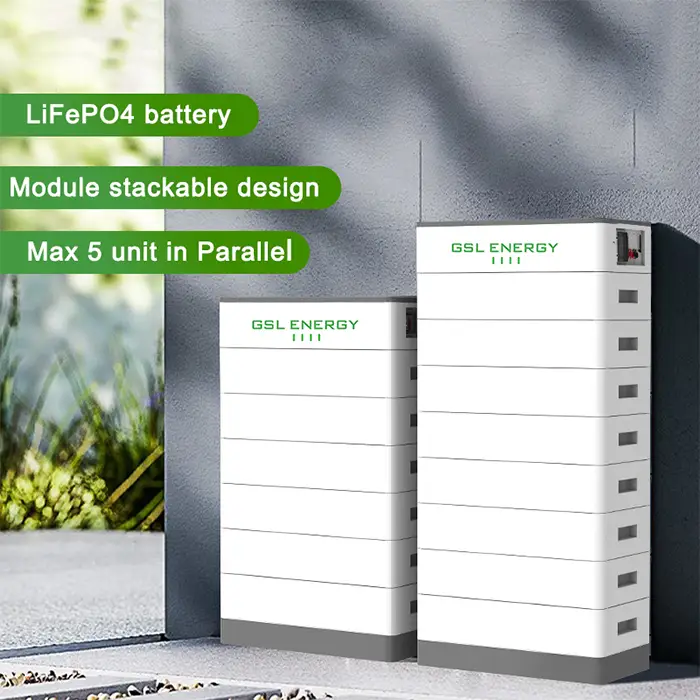

GSL 409.6V 204.8kWh High-Voltage Stacked Energy Storage System

The GSL ENERGY HV G4-G8 Pro Series is a high voltage lithium battery system based on lithium iron phosphate technology, specifically designed for medium to large-scale energy storage needs. This high voltage energy storage solution offers exceptional safety, scalability, and system integration capabilities. The system combines five 51.2kWh modules in parallel to form an integrated HV battery setup with a total capacity of up to 204.8kWh and a nominal voltage of 409.6V, suitable for various application scenarios such as residential villas, factories, commercial buildings, microgrids, and high-end residential areas.

    oops...!

    no product data.

    Go to homepage
    GSL ENERGY HV-G4~G8 Pro series  Powerbrick_datashe
    GSL ENERGY HV-G4~G8 Pro series Powerbrick_datashe

    HV G3-G8 Pro Series

    Product Description

    The GSL ENERGY HV G4-G8 Pro Series is a high-voltage stacked lithium iron phosphate battery system specifically designed for medium to large-scale energy storage needs, offering exceptional safety, scalability, and system integration capabilities. The system combines five 51.2 kWh modules in parallel to form an integrated energy storage solution with a total capacity of up to 204.8 kWh and a nominal voltage of 409.6V, suitable for various application scenarios such as residential villas, factories, commercial buildings, microgrids, and high-end residential areas.
    Core Advantages


    High-Voltage-Stacked-Energy-Storage-System

    Product Specifications

    Find the energy storage system product you need.

    Basic ParametersHV-G4 ProHV-G5 ProHV-G6 ProHV-G7 ProHV-G8 Pro
    Nominal Capacity (KWh)20.4825.630.7235.8440.96
    Cell Matching64S1P80S1P96S1P112S1P128S1P
    Nominal Voltage (V)204.8256307.2358.4409.6
    Working Voltage Range (V)182.4-230.4228-288273.6-345.6319.2-403.2364.8-460.8
    Weight (kg)255265315365415
    Dimension (WxDxH mm)680x380x836680x380x986680x380x1136680x380x1286680x380x1436
    Battery TypeLFP(LiFePO4)
    Nominal Working Current100
    Communication PortCAN/TCP/IP
    Working Temperature RangeCharge:0-55°C/Discharge:-20-60°C
    WaterproofIP20
    Installation MethodFloor-standing
    Cycle Life10 years
    Peak Charge/Discharge Current (@25°C,5S)65A
    Discharge Rate of Module≤6%/month/@25°C
    Module Series Connection/Module3S~8S
    Parallel Connection5 units in parallel

    Core Advantages

    High-voltage design for superior system efficiency

    Utilizing a 409.6V battery high voltage platform, the system effectively reduces energy loss, supports multi-brand hybrid inverters, and enhances overall system efficiency, making it particularly suitable for high-power commercial and industrial applications.


    Modular Structure for Flexible Scalability

    Each module in this high voltage lithium ion battery system has a capacity of 51.2kWh, supporting up to five modules in parallel for a scalable capacity of 204.8kWh.  This design facilitates customized configurations, easy installation, and simple maintenance.


    Intelligent BMS for System Safety and Stability

    Features a built-in high-performance Battery Management System (BMS) that supports real-time monitoring of voltage, current, temperature, and other parameters, along with multiple protection functions including overcharge, over-discharge, short-circuit, and over-temperature protection.  This ensures long-term reliability and safety for the lithium ion battery high voltage system.


    Multi-Protocol Communication for Strong Compatibility

    Supports multiple communication protocols including RS485, RS232, and CAN, enabling seamless integration with leading inverter brands on the market.  This makes the system a versatile high voltage battery solution with excellent compatibility and openness.


    Extended Lifespan, Quality Assurance

    Utilizes Grade A high voltage lithium battery cells with a cycle lifespan exceeding 6,500 cycles.  Backed by a 10-year warranty, the system ensures stable performance and reduced total lifecycle costs.


    Real-Time Display, Intuitive Operations and Maintenance

    Equipped with LED status indicator lights to display real-time operational status and core parameters, facilitating daily inspections and remote management of the HV battery system.


    Wide Range of Application Scenarios


    Peak shaving and load balancing in industrial facilities and warehouse complexes


    Backup power supply and energy management for commercial complexes


    Off-grid/microgrid high voltage energy storage systems for rural areas with weak power grids


    Solar-powered high voltage lithium ion battery storage for high-end residential buildings and villas


    Backup power supply systems for data centers and communication base stations
