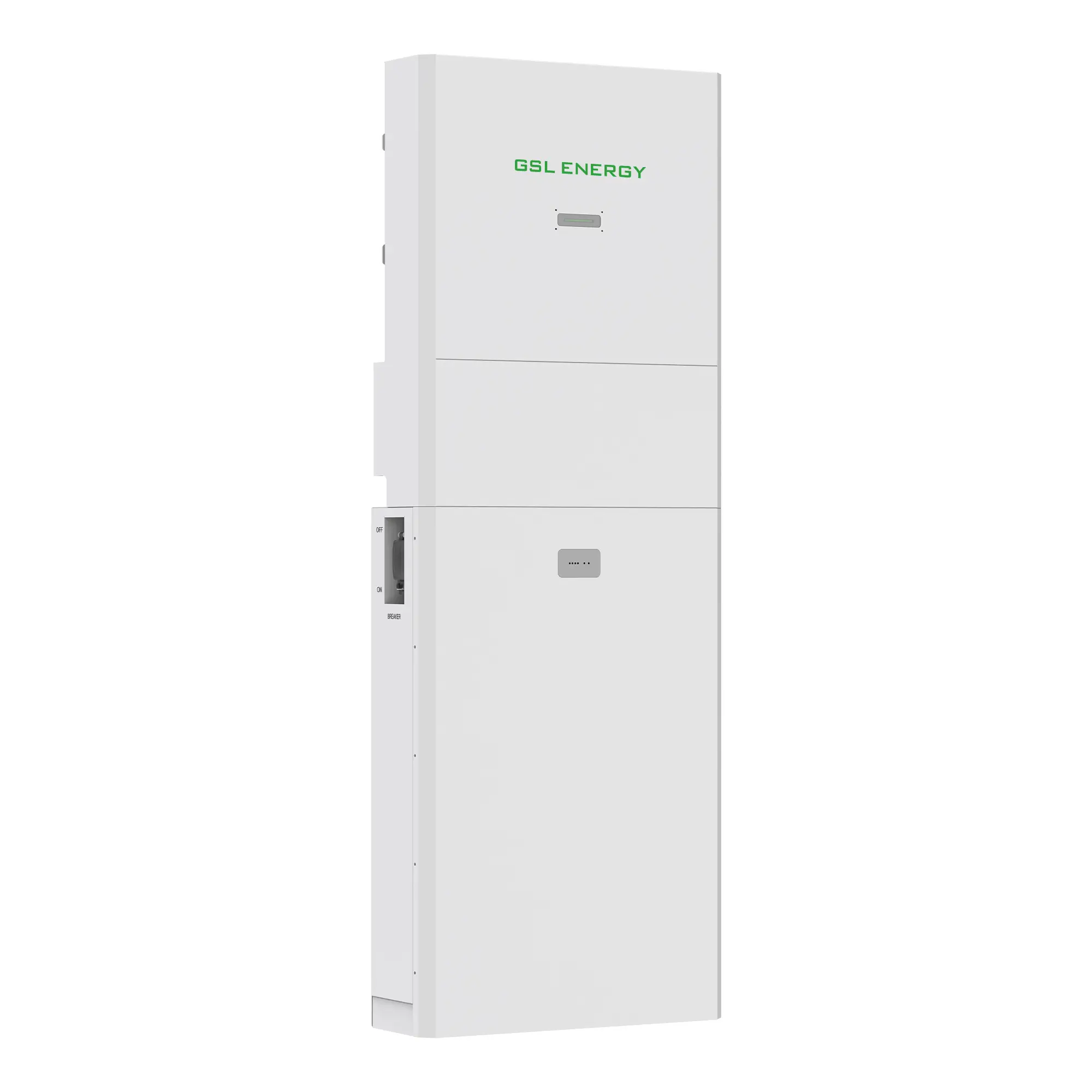

10.24kWh/20.48kWh 5kW All In One Solar Battery System

GSL Energy's All-In-One Solar System combines a 5kW solar inverter with integrated 10.24kWh or 20.48kWh battery storage to deliver efficient and reliable solar energy management. Designed for residential and small commercial use, this system enables seamless energy capture, backup power, and smart load optimization. Easy to install and scalable, it helps reduce electricity bills while promoting sustainable energy usage. We provide high-quality, customized solar energy solutions. Our experienced team of engineers and technicians works with you to design and install a solar energy system that meets your unique needs.

    oops...!

    no product data.

    Go to homepage
    GSL-AIO-5K20 Smart Energy Storage System_datasheet.pdf
    GSL-AIO-5K20 Smart Energy Storage System_datasheet.pdf
    GSL-AIO-5K10 Smart Energy Storage System_datasheet.pdf
    GSL-AIO-5K10 Smart Energy Storage System_datasheet.pdf
    Model NoGSL-AIO-5K10GSL-AIO-5K20
    Battery Parameter
    Battery TypeLFP(LiFePO4)
    Nominal Capacity
    10.24KWh20.48KWh
    Number of Batteries12


    Battery Voltage
    51.2V
    Voltage Range
    42-60V
    Max. Charging / Discharging Current
    100A
    Option16pcs(160kwh) parallel supported
    Dimension (W*D*H)560*180*920mm560*180*920mm *2
    Weight100kg200kg
    Off-grid Output
    Nominal Output Power
    5000W
    Nominal Voltage220V/230V/240V
    Nominal Frequency50/60Hz
    Nominal Output Current22.7A

    Nominal Output THDu

    <2%
    On-grid Parameter
    Nominal Output Power6000W
    Max. Input Current27.5A
    Nominal Grid Voltage220V/230V/240V
    Output Current from Grid27.2A
    Input Voltage Range184-276V
    Nominal Frequency45-65Hz
    PV Input
    Max. Input Power7500Wp
    Starting Voltage85A
    Max. Input Voltage600V
    MPPT Operating Voltage Range80-550V

    Full Load MPPT Operating Voltage

    Range

    350-500V
    Number of MPPTs2
    Max. Input String Per MPPT1
    Nominal Input Voltage360V
    Max. Input Current18A/18A
    Efficiency
    Max. Efficiency98.00%
    European Efficiency97.50%

    Max. Battery Charging/Discharging

    Efficiency

    95.20%
    General Data
    Dimension (W*D*H)560*180*1510mm1200*180*1510mm
    Weight128kg228kg
    Noise<25dB(A)
    Operating Temperature Range-20℃~+50℃
    Cooling MethodNatural cooling
    Ingress Protection GradeIP65
    DisplayLED/APP/WIFI/4G/Bluetooth
    Communication PortRS485/CAN/DRED/Dry contact/Parallel port
    ProtectionDC Switch, PV Insulation Resistance Detection, Residual Current Monitoring, Anti-islanding Protection,  Reverse Polarity Protection(PV&Battery) AC Short Circuit Protection, AC Overcurrent Protection,AC Overvoltage  Protection:LEVEL III;PV&Battery:LEVEL II, Surge Protection, Lightning Protection:TYPE II
    Inverter Certification
    CE_LVDIEC 62109-1, IEC 62109-2, EN 62109-1, EN 62109-2
    CE_EMCEN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4
    GridVDE-AR-N 4105, C10-11, G98/G99, CEI 0-21, EN50549, NRS 097-2-1, AS 4777.2, R25,UNE217001,UNE217002,NTS 2.1
    Battery Certification

    EC62619, CE-EMC, UN38.3, MSDS


    10.24kWh/20.48kWh 5kW All In One Solar Battery System 5

    10.24kWh/20.48kWh 5kW All In One Solar Battery System 6

    10.24kWh/20.48kWh 5kW All In One Solar Battery System 7

    10.24kWh/20.48kWh 5kW All In One Solar Battery System 8

    10.24kWh/20.48kWh 5kW All In One Solar Battery System 9

    10.24kWh/20.48kWh 5kW All In One Solar Battery System 10

    10.24kWh/20.48kWh 5kW All In One Solar Battery System 11

    10.24kWh/20.48kWh 5kW All In One Solar Battery System 12

    10.24kWh/20.48kWh 5kW All In One Solar Battery System 13

    10.24kWh/20.48kWh 5kW All In One Solar Battery System 14

    10.24kWh/20.48kWh 5kW All In One Solar Battery System 15


    Please Contact Us!
