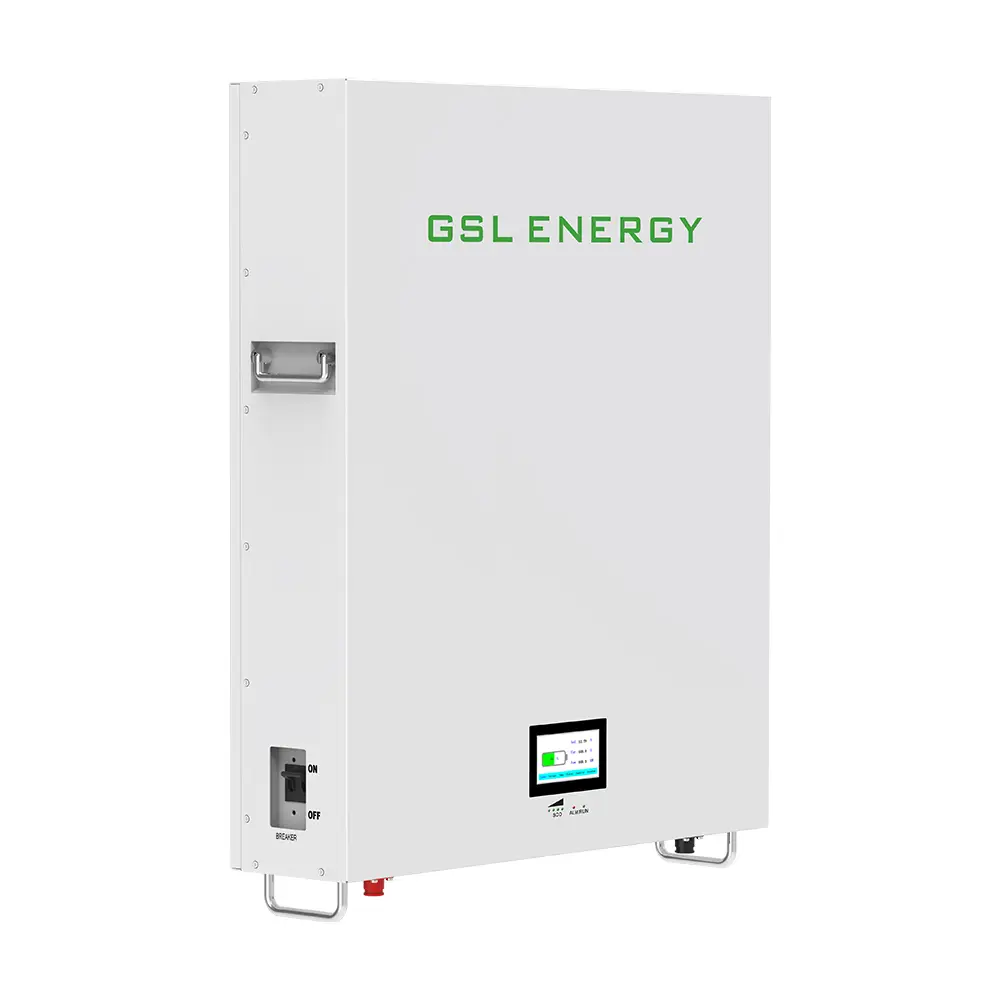

14.34kWh 280Ah 51.2V Power Storage Wall | UL9540A & UL1973 Certified Home LiFePO₄ Battery
| MODEL NO |
GSL051280A-B-GBP2 |
|
| Battery Chemistry | LiFePO4 Solar Battery | |
|
Capacity (Ah) |
280 |
|
| Scalability | Max.16pcs in parallel (229kWh) | |
|
Nominal Voltage (V) |
51.2/48V | |
| Operating Voltage(V) | 46-56 | |
|
Energy (kWh) |
14.34 | |
|
Usable Energy (kWh) |
12.91 | |
|
Charge/Discharge Current (A) |
Recommend |
100 |
|
Max. |
150 | |
|
Peak(2mins,25℃) |
200 | |
| Other Parameter | ||
| Recommend Depth of Discharge | 80% | |
| Dimension (W/H/D,mm) | 900*675*200 | |
|
Weight Approximate (kg) |
128.50 | |
| Master LED Indicator | 4 LED (SOC:25%~100%) | |
| 2 LED (working, alarming, protecting) | ||
|
IP Rating of Enclosure |
IP20 | |
| Working Temperature | Charge:0℃～55℃ Discharge:-20℃～55℃ | |
|
Storage Temperature |
0℃～35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) | ≥8500 | |
| Installation | Wallmounted | |
| Communication Port | CAN2.0, RS485 | |
| Warranty Period [3] | 15 years | |
| Certification |
UL1973, UL9540A, CB-IEC62619, CE-EMC, MSDS, UN38.3 |
|
Why Choose GSL Power Storage Wall?
Powerful. Certified. Designed for Smart Homes.
High Capacity – 14.34kWh of energy to support essential loads for days
Certified Safe – UL9540A, UL1973, CE-EMC compliance
Smart Monitoring – Optional WiFi & Bluetooth for real-time insights
Wall-Mounted Design – Space-saving and easy to install
Long Life Cycle – Over 6500 cycles with 10-year warranty
Solar Integration – Easily pair with solar inverters for energy independence
The GSL Power Storage Wall is also available as a solar battery 48V solution, making it the perfect match for modern residential solar energy systems. Built with advanced LiFePO₄ chemistry, this 48V lithium battery ensures stable voltage output, high round-trip efficiency, and long service life for daily cycling. Its wall-mounted design saves space while providing flexible installation options for both new and retrofit solar projects.
With intelligent battery management (BMS), remote monitoring capability, and wide inverter compatibility, the 48V solar battery can be seamlessly integrated into on-grid, off-grid, or hybrid systems. Homeowners can easily expand capacity by connecting multiple units in parallel, achieving scalable storage from a single-family household to large villas or small businesses.
