GSL High-Voltage Rack Energy Storage System — Yemen Edition (51.2V 314Ah, 128kWh–241kWh) 1
GSL High-Voltage Rack Energy Storage System — Yemen Edition (51.2V 314Ah, 128kWh–241kWh) 2
GSL High-Voltage Rack Energy Storage System — Yemen Edition (51.2V 314Ah, 128kWh–241kWh) 1
GSL High-Voltage Rack Energy Storage System — Yemen Edition (51.2V 314Ah, 128kWh–241kWh) 2

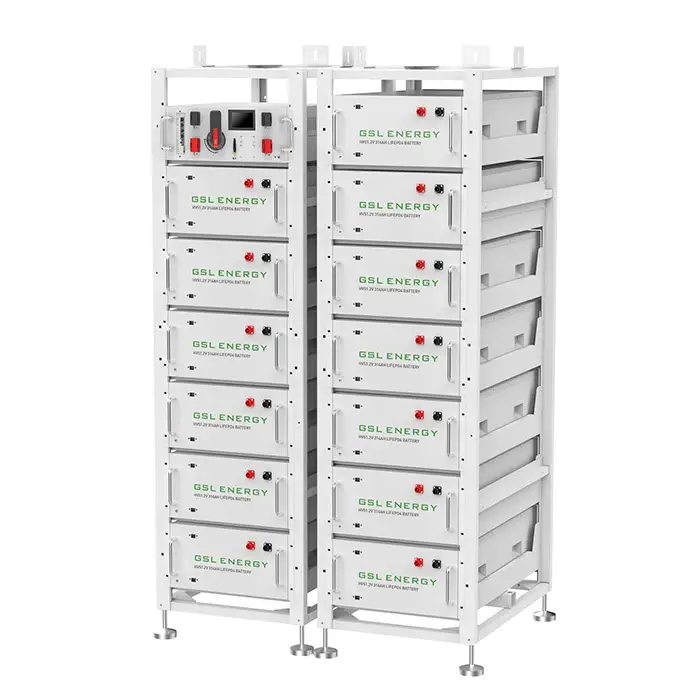

GSL High-Voltage Rack Energy Storage System — Yemen Edition (51.2V 314Ah, 128kWh–241kWh)

High-Capacity Modular HV ESS for Reliable Backup and Off-Grid Energy in Yemen
The GSL HV Rack Energy Storage System (51.2V 314Ah) is a high-capacity, safe, and modular solution designed for Yemen’s residential, commercial, and microgrid applications. Built with premium LiFePO₄ cells and an intelligent BMS, the system delivers long-life reliability, optimal protection, and scalable energy storage, making it ideal for whole-building backup, off-grid solar integration, and weak-grid environments.
5.0
design customization

    oops...!

    no product data.

    Go to homepage
    HV Battery GSL-R128~209K User Mannull(Cab#5)(HV51-
    HV Battery GSL-R128~209K User Mannull(Cab#5)(HV51-
    HV Battery R128~R209K

    Product Description

    The GSL High-Voltage Rack Energy Storage System is a high-capacity, safe, and modular energy solution designed for residential, commercial, and microgrid applications in Yemen. Built with premium 51.2V 314Ah LiFePO₄ cells and an intelligent industrial-grade BMS, the system ensures long-life reliability, optimal protection, and stable performance, even in high-temperature and weak-grid conditions.

    GSL High-Voltage Rack Energy Storage System 51.2V 314Ah for Yemen Residential and Commercial Backup

    Product Specifications

    Find the energy storage system product you need.

    Items Parameters
    Battery Module Type GSL- GSL- GSL- GSL- GSL- GSL- GSL- GSL-
    R128K R144K R160K R176K R192K R209K R225K R241K
    Nominal Capacity(Ah) 314AH
    Battery Module Chemistry LiFePO4
    Battery Module QTY 8 9 10 11 12 13 14 15
    Cell Matching 128S1P 144S1P 160S1P 176S1P 192S1P 208S1P 225S1P 241S1P
    Nominal Energy(kWh) 128.61 144.69 160.76 176.84 192.92 208.99 225.07 241.15
    Voltage Nominal(V) 409.6 460.8 512 563.2 614.4 665.6 716.8 768
    Working Voltage 358.4-460.8 403.2-518.4 448-576 492.8-633.6 537.6-691.2 598-728 630-810 674.8-867.6
    Range(V)
    Current Nominal Working Current(A) 200A
    Weight(Approx.) 879.6kg 1042kg 1204.4kg 1366.8kg 1529.2kg 1691.6kg 1854kg 2016.4kg
    Dimensions(H*W*D) 1200*1000*2500mm
    Communication RS485/CAN
    Cycle Life 10000 times@25℃
    Designed Calendar Life 10 years
    Waterproof IP50
