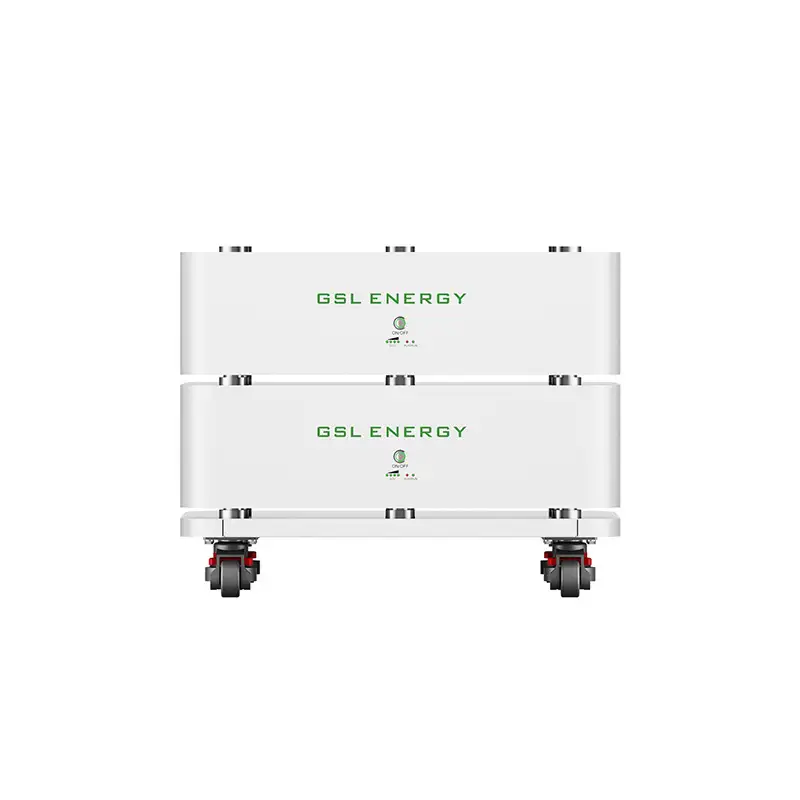

5.12kWh/10.24kWh/15.36kWh/20.48kWh 100Ah/200Ah/300Ah/400Ah 51.2V CB IEC62619 Power Brick Battery with WiFi and Bluetooth
The Power Brick Battery (GSL Energy Storage System) suitable for residential energy storage, One set provides electricity for the whole house. With high energy density and multiple mounting ways, stack rack battery is space-saving for all kinds of installation. To serve evolving load requirement, modular design can fit your energy demand of today and tomorrow.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Battery Specifications | |
| Model No | GSL 5000U-5KWH |
| Nominal Parameters | |
| Battery Chemistry | LiFePO4 |
| Voltage | 51.2V |
| Capacity | 100Ah |
| Energy | 5.12kWh |
| Operating Voltage | 46–56V |
| Max. Charge Voltage | 56Vdc |
| Max. Charge Current | 100A (5120W) |
| Max. Discharge Current | 100A (5120W) |
Basic Parameters | |
| Warranty Period [3] | 10 years |
| Dimension (W/H/D) | 590*435*165mm |
| Weight Approximate | 50kgs |
| Master LED Indicator | 4 LED (SOC:25%~100%) |
| 2 LED (working, alarming, protecting) | |
| IP Rating of Enclosure | IP20 (Indoor use) |
| Storage Time/ Temperature | 5months@25°C;3months@35°C;1month@45°C |
| Working Temperature | -20°C to 60°C @60+/-25% Relative Humidity |
| Storage Temperature | 0°C to 45°C @60+/-25% Relative Humidity |
| Humidity | 5%~95% |
| Altitude | ≤3000m |
Cycle Life (25±2°C,0.5C/0.5C,80%EOL) | ≥6500 |
| Certification | IEC62619, CE-EMC, UN38.3, MSDS |
Please Contact Us！
We will serve you the best products with the favorite prices
| Model No | GSL5000U | GSL10000U |
| Voltage | 51.2V | |
| Capacity | 100Ah | 200Ah |
Energy | 5.12Kwh | 10.24Kwh |
Opertion Voltage | 46-56Vdc | |
| Max Charging Voltage | 56Vdc | |
Max Charging Current | 100A | |
Max Discharging Current | 150A | |
Max Power | 5120W | 7680W |
| Dimension(L×W×H) | 580*390*200mm | 685*435*231mm |
| Weight | 65kg | 100.5kg |
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) | ≥6500 | |
| Certification | IEC62619, CE-EMC, UN38.3, MSDS | |
Please Contact Us！
We will serve you the best products with the favorite prices
