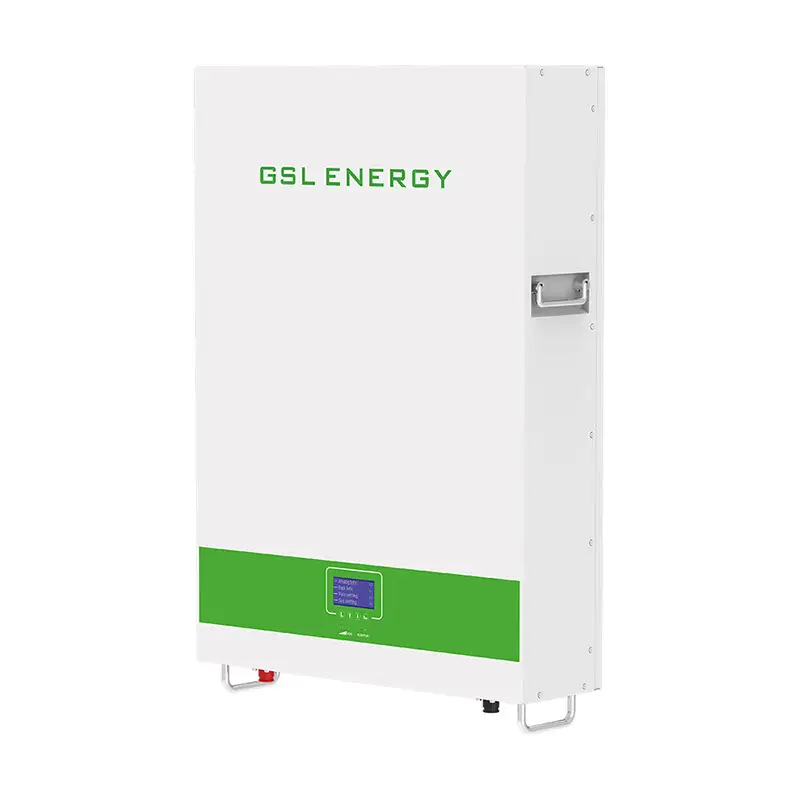

5kWh/10kWh/14.34kWh 100Ah/200Ah/280Ah 51.2V CB IEC62619 CE-EMC Power Storage Wall Mounted Solar Battery
powerwall battery,home battery storage,solar battery for house,100ah/200ahlithiu
GSL Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down. Your system detects outages, powers your home and electric vehicle with backup energy and automatically recharges with sunlight to keep your appliances running for days.
Pair with solar and recharge with sunlight to keep your appliances running for days. Power storage wall reduces your reliance on the grid by storing your solar energy for use when the sun isn't shining.
Use Power storage wall alone or combine it with other GSL products to save money, reduce your carbon footprint and prepare your home for power outages.
GSL Energy is a leading lithium battery manufacturer specializing in the production of Powerwall battery, home battery storage, solar battery for house, and lithium ion batteries.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Battery Specifications | ||||
| MODEL NO | GSL-051100A-B-GBP2 | GSL051200A-B-GBP2 | GSL051280A-B-GBP2 | |
| Battery Chemistry | LiFePO4 | |||
| Capacity (Ah) | 100Ah | 200Ah | 280Ah | |
| Scalability | Max.16pcs in parallel (81.91kWh) | Max.16pcs in parallel (163.8kWh) | Max.16pcs in parallel (229kWh) | |
| Nominal Voltage (V) | 51.2V | |||
| Operating Voltage (V) | 46-56 | |||
| Energy (kWh) | 5.12kWh | 10.24kWh | 14.34kWh | |
| Usable Energy (kWh) | 4.61kWh | 9.22kWh | 12.91kWh | |
| Charge/Discharge Current (A) | Recommend | 50A | 100A | 150A |
| Max. | 100A | 200A | 200A | |
| Other Parameter | ||||
| Recommend Depth of Discharge | 90% | |||
| Dimension (W/H/D,mm) | 650*480*180mm / 25.6*18.9*7.1 in | 720*550*200mm / 28.3*21.6*7.8 in | 945*675*230mm / 37.2*26.6*9.0 in | |
| Weight Approximate (kg) | 62.5kgs / 137 lbs | 102.5kgs / 225 lbs | 131.7kgs / 290 lbs | |
| Master LED Indicator | 4 LED (SOC:25%~100%) | |||
| 2 LED (working, alarming, protecting) | ||||
| IP Rating of Enclosur | IP20 | |||
| Working Temperature | Charge:0℃～55℃ Discharge:-20℃～55℃ | |||
| Storage Temperature | 0℃～35℃ | |||
| Humidity | 5%~95% | |||
| Altitude | ≤3000m | |||
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) | ≥6500 | ≥6500 | ≥8500 | |
| Installation | Wall mounted | |||
| Communication Port | CAN2.0, RS485 | |||
| Life Cycle Power During Warranty Period | 22.42MWh@80% EOL | 44.84MWh@80% EOL | 64.80MWh@80% EOL | |
| Warranty Period | 10 years | |||
| Certification | CB-IEC62619,CE-EMC, UN38.3, MSDS | CB-IEC62619, CE-EMC, CEI 0-21 UN38.3, MSDS | UL1973, UL9540A, CB-IEC62619, CE-EMC, UN38.3, MSDS | |
| MODEL NO | GSL051100A-B-GBP2 | GSL051200A-B-GBP2 | |
| Battery Chemistry | LiFePO4 | ||
Capacity (Ah) | 100 | 200 | |
| Scalability | Max.16pcs in parallel (81.92kWh) | Max.16pcs in parallel (162kWh) | |
Nominal Voltage (V) | 51.2 | ||
| Operating Voltage (V) | 46-56 | ||
Energy (kWh) | 5.12 | 10.24 | |
Usable Energy (kWh) | 4.61 | 9.22 | |
Charge/Discharge Current (A) | Recommend | 50 | 100 |
Max. | 100 | 150 | |
Peak(2mins,25℃) | 150 | 200 | |
| Other Parameter | |||
| Recommend Depth of Discharge | 80% | ||
| Dimension (W/H/D,mm) | 436*650*160 | 550*800*160 | |
Weight Approximate (kg) | 45.00 | 84.50 | |
| Master LED Indicator | 4 LED (SOC:25%~100%) | ||
| 2 LED (working, alarming, protecting) | |||
IP Rating of Enclosur | IP50 | ||
| Working Temperature | Charge:0℃～55℃ Discharge:-20℃～55℃ | ||
Storage Temperature | 0℃～35℃ | ||
| Humidity | 5%~95% | ||
| Altitude | ≤2000m | ||
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) | ≥6500 | ||
| Installation | Wallmounted | ||
| Communication Port | CAN2.0, RS485 | ||
| Warranty Period | 10 years | ||
| Certification | CB-IEC62619, CE-EMC, MSDS, UN38.3 | ||
